Electrical drive systems are a vital component of automation systems in the industrial context since they account for a large proportion of electrical energy consumption. Such drive systems have a central function in achieving energy savings. With automation growing at an increasing pace, the motor drive is the backbone of the future industrial facility. This growth challenges us to further focus on the efficiency of industrial drive systems while designing for higher currents, more accurate control, and better system reliability. onsemi’s complete portfolio of motor drive solutions addresses this challenge with our industry-leading MOSFETs, IGBTs, gate drivers, and power modules provide the building blocks for high power motor drive. In contrast, our motor driver family supports various lower voltage motors, including brushed, brushless, and steppers. Galvanic isolation and high-performance op-amps allow for safety and control, completing the system solution.

AC Motors
Brushless DC (BLDC) Motor

Interactive Block Diagram

2 Add a part
Select checkbox next to product and then Add to Worksheet button.
3 Download the worksheet
Worksheet Preview:
Application Block Product Taxonomy Part
White Paper

Sensorless Direct Torque and Flux Control with Permanent Magnet Synchronous Motors

The Direct Torque and Flux Control (DTFC) is a control technique developed for three−phase AC permanent magnet synchronous motors. DTFC uses a model of the electric motor flux and torque equations.

View

Evaluation/Development Kits

Motor Development Kits

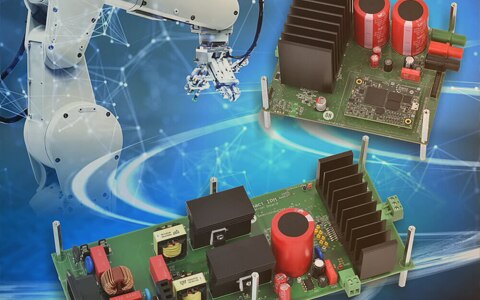

Efficient and reliable electric motor drives are complex systems to develop, but with the Motor Development Kit (MDK) onsemi makes it easy. The comprehensive prototyping platform consist of the Universal Controller Board (UCB) which connects to an expanding variety of Power Boards to create quick-start platforms to run your motor, allowing you to rapidly test, evaluate and optimize your system before designing any hardware.

1kW 600V Industrial Motor Control Power Board with Compact Intelligent Power Module (IPM)

The SECO-1KW-MCTRL-GEVB is an AC grid compatible complete reference design for three-phase motor drives, featuring the 600V NFAQ1060L36T intelligent power module (IPM) in a DIPS6 package and an interleaved PFC controlled by NCP1632.

4kW 650V Industrial Motor Control Power Board with Compact Intelligent Power Module (IPM)

The SECO-4KW-65SPM31-GEVB is a reference design for three-phase motor drives featuring the NFAM5065L4B 650 V Intelligent Power Module in a DIP39 package. It is rated for 400 VDC input, delivering up to 1 kW continuous power, with the capability of delivering up to 4 kW power for a short period of time or by adding a heatsink.

Evaluation Boards and Development Kits for Intelligent Power Modules (IPMs)

Technical Documents

Application Notes for Intelligent Power Modules (IPMs)

Application Notes for Gate Drivers

IPM Overview and Product Selection Guide

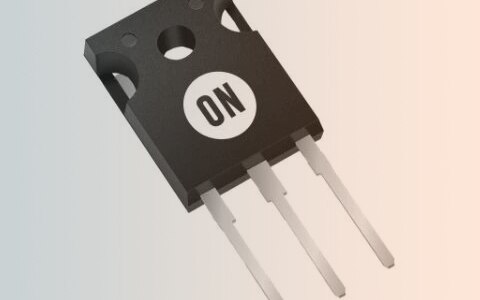

Gate Drive Optimization for SiC MOSFETs
